Applications

Casters are used in a wide variety of industrial applications:

• Material handling equipment: Used on carts, dollies, platforms and material conveyors in warehouses, factories and distribution centers to facilitate the handling and transport of loads.


• Industrial furniture: In industrial and commercial environments, casters are mounted on tables, workbenches, shelving and cabinets to allow reconfiguration and movement as needed.


• Internal transport vehicles: In warehouses and manufacturing plants, wheels are used on transport c a r t s and trailers to expedite the mobility of products and materials.


• Industrial machinery: Are incorporated into industrial equipment and machinery, such as welding machines, lathes and milling machines, to allow movement and reconfiguration as required.


• Mobile automation: In mobile automation and robotics systems, wheels allow robots and automated systems to move around different areas and perform specific tasks.

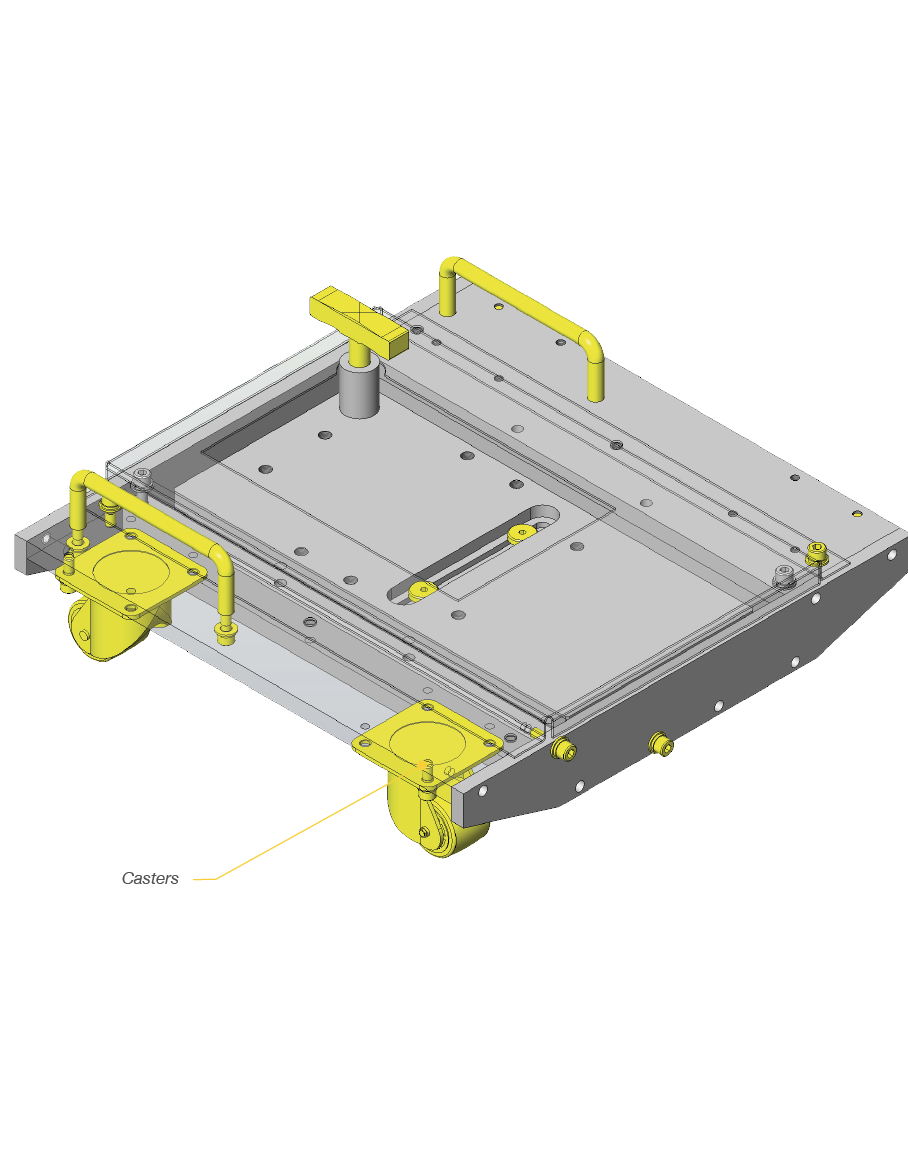

MISUMI inCAD Library

Example EBH35

Types

• Plate Type Swivel: With plate for direct mounting on the machine. The plate has a bearing that allows the wheel to rotate. Can be configured with feed and rotation brake.


• Plate Type Fix: With plate for direct mounting on the machine. The plate allows only a linear feed to the wheel. Options with feed brake.


• Screw-in Type: Assembled with a stud or bolt for installation in pipes or profiles. Options with feed brake.


• Angle: With vertical mounting plate ideal for mounting on an angled shaft.


• With Shock absorber: Equipped with a mechanical shock absorber to absorb shocks and vibrations and reduce damage to the load being transported.


• With Leveling mounts: Integrate a leveling base that allows adjusting the machine in one position and moving it again when the leveler is lifted.


• Plug-in Type: Wheels with a longer mounting stud intended for scaffolding assembly.


• Resin: Non-metallic, light and aesthetic slices for light loads.


• Corner: With triangular mounting plate for easy installation in almost any corner.


• Two wheels: Are characterized by excellent freedom of rotation in changes of direction. Options for ultra-heavy loads.

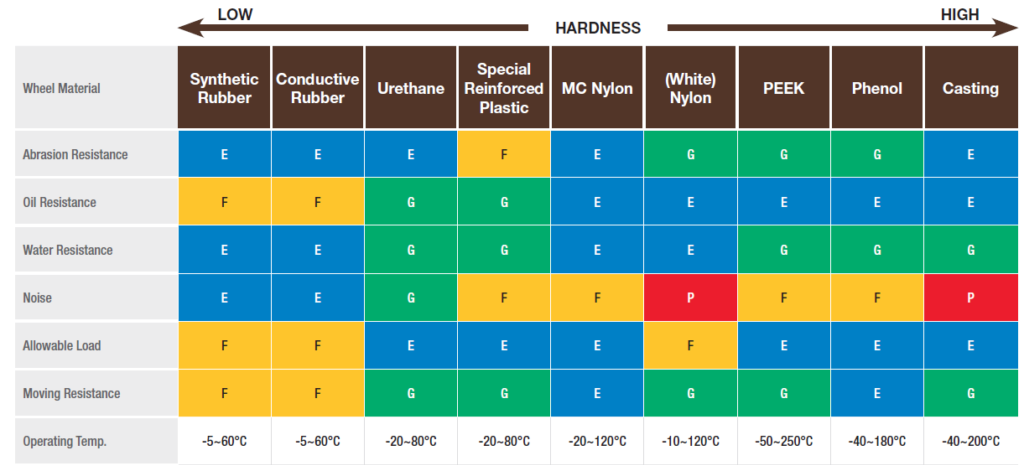

Materials and Dimensions

---

Casters can be manufactured in a variety of materials, depending on application requirements and operating
conditions.
